Troop compartment extinguishers for armored vehicle systems

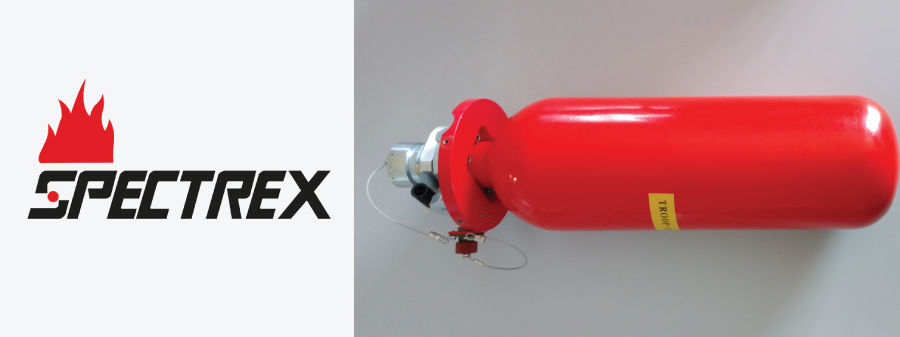

The Extinguisher is specifically designed for Personnel compartments of armoured Vehicle Systems. The extinguishers contain environmental friendly fire suppression agent HFC227ea with scrubbing agent sodium bicarbonate (SB). The special design of the cylinder’s valve and deflector enables rapid and homogenous dispersion of the suppression agent in the protected area.
Cylinders are available in various capacities ,conform to either DOT or EU standards, include safety devices such as safety relief valve and anti recoil device.
Main features
- High speed response – less than 5 msec
- Reduced discharge impact – increased crew safety
- Unique valve design – no moving parts
- Visual pressure gauge
- Hermetically sealed valve
- Filling valve: MS28889-2
- Fast agent release and distribution
- Pressure switch for cylinder status indication
- MTBF minimum 250,000 hours
- Homogenous 360° agent dispersion
SOLICITA INFORMACIÓN Y PRESUPUESTOS GRATUITOS
Error: Contact form not found.
LLÁMANOS AL
+39 080 311 89 98
General Specifications
- Extinguishing Agent HFC227ea
- Scrubbing Agent Sodium bicarbonate (5% of total extinguishing agent weight)
- Cylinders Capacity Various sizes between 4.4 – 11 lb (2-5 kg)
- Super pressurization Dry Nitrogen, as per BB-N-411
- Cylinder Nominal Pressure 600 psi
- Valve Operation Cartridge power device
- Valve Operation Time Approx. 5 msec
- Temperature Range -40°F to 160°F (-40°C to 70°C)
- Humidity Up to 95%
Electrical Specifications
- Activation Device Resistance ~1.2Ω
- Power consumption During activation 5A in approx. 5 msec.
- Electrical Connection / Pinout Model No.765347, connector type MS3102R 10SL-3P, Activation signal A, RTN B, Pressure Switch C
- Electromagnetic Compatibility EMI/RFI per MIL-STD-461E (as part of the system)
Mechanical Specifications
- Weight (Filled) 23 lb (10.4 kg) for 6.6 lb (3 kg) capacity
- Dimensions 6.3″ diameter x 14″ (160 mm diameter x 356 mm) for 6.6 lb (3 kg) capacity
- Cylinder Body Steel, red paint coating
- Environmental Standards Meets MIL-STD-810F for high temp, low temp, humidity, vibration, shock, waterproof, dust, salt & fog
